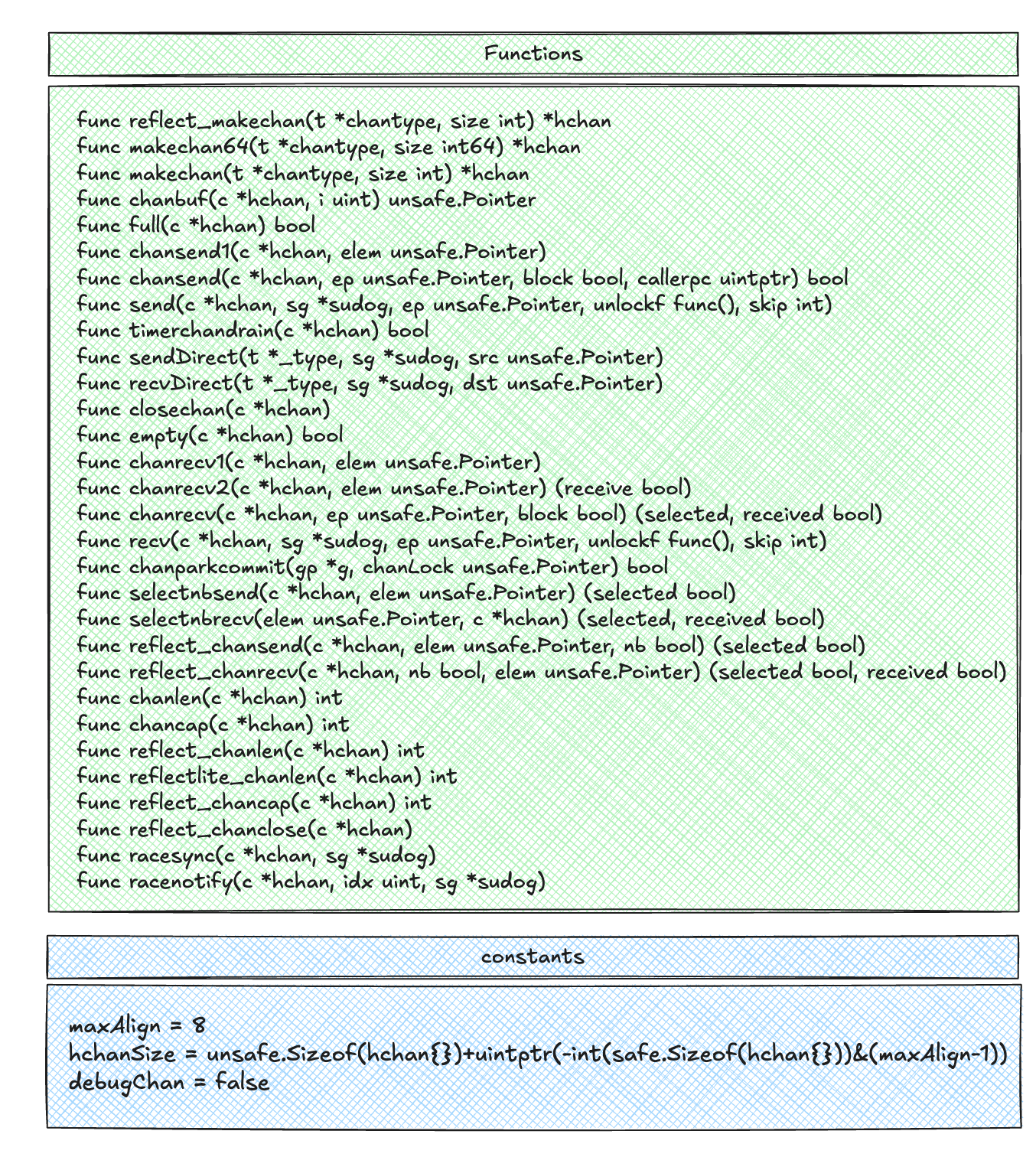

//go:linkname reflect_makechan reflect.makechan
func reflect_makechan(t *chantype, size int) *hchan {
    return makechan(t, size)
}

type hchan struct {
    qcount   uint // total data in the queue
    dataqsiz uint // size of the circular queue
    buf      unsafe.Pointer // points to an array of dataqsiz elements
    elemsize uint16
    synctest bool // true if created in a synctest bubble
    closed   uint32
    timer    *timer // timer feeding this chan
    elemtype *_type // element type
    sendx    uint // send index
    recvx    uint // receive index
    recvq    waitq // list of recv waiters
    sendq    waitq // list of send waiters

    // lock protects all fields in hchan, as well as several
    // fields in sudogs blocked on this channel.
    //
    // Do not change another G's status while holding this lock
    // (in particular, do not ready a G), as this can deadlock
    // with stack shrinking.
    lock mutex
}

type waitq struct {
    first *sudog
    last  *sudog
}

type g struct {
    ...
}

type sudog struct {
    // The following fields are protected by the hchan.lock of the
    // channel this sudog is blocking on. shrinkstack depends on
    // this for sudogs involved in channel ops.

    g *g

    next *sudog
    prev *sudog
    elem unsafe.Pointer // data element (may point to stack)

    // isSelect indicates g is participating in a select, so
    // g.selectDone must be CAS'd to win the wake-up race.
    isSelect bool

    c *hchan // channel
}

func makechan(t *chantype, size int) *hchan

elem := t.Elem

// compiler checks this but be safe.
if elem.Size_ >= 1<<16 {
    throw("makechan: invalid channel element type")
}
if hchanSize%maxAlign != 0 || elem.Align_ > maxAlign {
    throw("makechan: bad alignment")
}

var c *hchan
switch {
case mem == 0:
    // Queue or element size is zero.
    c = (*hchan)(mallocgc(hchanSize, nil, true))
    // Race detector uses this location for synchronization.
    c.buf = c.raceaddr()
case !elem.Pointers():
    // Elements do not contain pointers.
    // Allocate hchan and buf in one call.
    c = (*hchan)(mallocgc(hchanSize+mem, nil, true))
    c.buf = add(unsafe.Pointer(c), hchanSize)
default:
    // Elements contain pointers.
    c = new(hchan)
    c.buf = mallocgc(mem, elem, true)
}

c.elemsize = uint16(elem.Size_)
c.elemtype = elem
c.dataqsiz = uint(size)
if getg().syncGroup != nil {
    c.synctest = true
}
lockInit(&c.lock, lockRankHChan)

if debugChan {
    print("makechan: chan=", c, "; elemsize=", elem.Size_, "; dataqsiz=", size, "\n")
return c
}

func chansend(c *hchan, ep unsafe.Pointer, block bool, callerpc uintptr) bool

if c == nil {
    if !block {
        return false
    }
    gopark(nil, nil, waitReasonChanSendNilChan, traceBlockForever, 2)
    throw("unreachable")
}

// ...
// Fast path: check for failed non-blocking operation without acquiring the lock.
//
// After observing that the channel is not closed, we observe that the channel is not ready for sending. Each of these observations is a single word-sized read (first c.closed and second full()).
// Because a closed channel cannot transition from 'ready for sending' to
// 'not ready for sending', even if the channel is closed between the two observations,
// they imply a moment between the two when the channel was both not yet closed
// and not ready for sending. We behave as if we observed the channel at that moment,
// and report that the send cannot proceed.
//
// It is okay if the reads are reordered here: if we observe that the channel is not
// ready for sending and then observe that it is not closed, that implies that the
// channel wasn't closed during the first observation. However, nothing here
// guarantees forward progress. We rely on the side effects of lock release in
// chanrecv() and closechan() to update this thread's view of c.closed and full().
if !block && c.closed == 0 && full(c) {
    return false
}

lock(&c.lock)

if c.closed != 0 {
    unlock(&c.lock)
    panic(plainError("send on closed channel"))
}

if sg := c.recvq.dequeue(); sg != nil {
    // Found a waiting receiver. We pass the value we want to send
    // directly to the receiver, bypassing the channel buffer (if any).
    send(c, sg, ep, func() { unlock(&c.lock) }, 3)
    return true
}

if c.qcount < c.dataqsiz {
    // Space is available in the channel buffer. Enqueue the element to send
    qp := chanbuf(c, c.sendx)
    if raceenabled {
        racenotify(c, c.sendx, nil)
    }
    typedmemmove(c.elemtype, qp, ep)
    c.sendx++
    if c.sendx == c.dataqsiz {
        c.sendx = 0
    }
    c.qcount++
    unlock(&c.lock)
    return true
}

if !block {
    unlock(&c.lock)
    return false
}

// Block on the channel. Some receiver will complete out operation for us.
gp := getg()
mysg := acquireSudog()
// No stack splits between assigning elem and enqueuing mysg
// on gp.waiting where copystack can find it.
mysg.elem = ep
mysg.waitlink = nil
mysg.g = gp
mysg.isSelect = false
mysg.c = c
gp.waiting = mysg
gp.param = nil
c.sendq.enqueue(mysg)

gopark(chanparkcommit, unsafe.Pointer(&c.lock), ...)
// Ensure the value being sent is kept alive until the
// receiver copies it out. The sudog has a pointer to the
// stack object, but sudogs aren't considered as roots of the
// stack tracer.
KeepAlive(ep)

// ... (woken up here)

closed := !mysg.success
// ... (cleanup gp and mysg) ...
releaseSudog(mysg)

if closed {
    // was woken up because the channel was closed
    panic(plainError("send on closed channel"))
}
return true

// send process a send operation on an empty channel c.
// The value ep sent by the sender is copied to the receiver sg.
// The receiver is then woken up to go on its merry way.
// Channel c must be empty and locked. send unlocks c with unlockf.
// sg must already be dequeued from c.
// ep must be non-nil and point to the heap or the caller's stack.
func send(c *hchan, sg *sudog, ep unsafe.Pointer, unlockf func(), skip int)

if sg.elem != nil {
    sendDirect(c.elemtype, sg, ep)
    sg.elem = nil
}

gp := sg.g
unlockf()
gp.param = unsafe.Pointer(sg)
sg.success = true
if sg.releasetime != 0 {
    sg.releasetime = cputicks()
}
goready(gp, skip+1)

// Sends and receives on unbuffered or empty-buffered channels are the
// only operations where one running goroutine writes to the stack of
// another running goroutine. The GC assumes that stack writes only
// happen when the goroutine is running and are only done by that
// goroutine. Using a writer barrier is sufficient to make up for
// violating that assumption, but the write barrier has to work.
// typedmemmove will call bulkBarrierPreWrite, but the target bytes
// are not in the heap, so that will not help. We arrange to call
// memmove and typeBitsBulkBarrier instead.
func sendDirect(t *_type, sg *sudog, src unsafe.Pointer) {
    // src is on our stack, dst is a slot on another stack.

    // Once we read sg.elem out of sg, it will no longer
    // be updated if the destination's stack gets copied (shrunk).
    // So make sure that no preemption points can happen between read & use.
    dst := sg.elem
    typeBitsBulkBarrier(t, uintptr(dst), uintptr(src), t.Size_)
    // No Need for cgo write barrier checks because dst is always
    // Go memory.
    memmove(dst, src, t.Size_)
}

func chanrecv(c *hchan, ep unsafe.Pointer, block bool) (selected, received bool)

// ...
if c == nil {
    if !block {
        return
    }
    gopark(nil, nil, waitReasonChanReceiveNilChan, traceBlockForever, 2)
    throw("unreachable")
}
// ...
// Fast path: check for failed non-blocking operation without acquiring the lock.
if !block && empty(c) {
    // After observing that the channel is not ready for receiving, we observe whether
    // channel is closed.
    //
    // Reordering of these checks could lead to incorrect behavior when racing with a close.
    // For example, if the channel was open and not empty, was closed, and then drained,
    // reordered reads could incorrectly indicate "open and empty". To pervent reordering,
    // we use atomic loads for both checks, and rely on emptying and closing to happen in
    // seperate critical sections under the same lock. This assumption fails when closing
    // an unbuffered channel with a blocked send, but that is an error condition anyway.
    if atomic.Load(&c.closed) == 0 {
        // Because a channel cannot be reopened, the later observation of the channel
        // being not closed implies that it was also not closed at the moment of the
        // first observation. We behave as if we observed the channel at that moment
        // and report that the receive cannot proceed.
        return
    }
    // The channel is irreversibly closed. Re-check whether the channel has any pending data
    // to receive, which could have arrived between the empty and closed checks above.
    // Sequential consistency is also required here, when racing with such a send.
    if empty(c) {
        // ...
        if ep != nil {
            typedmemclr(c.elemtype, ep)
        }
        return true, false
    }
}

lock(&c.lock)

if c.closed != 0 {
    if c.qcount == 0 {
        unlock(&c.lock)
        if ep != nil {
            typedmemclr(c.elemtype, ep)
        }
        return true, false
    }
    // The channel has been closed, but the channel's buffer have data.
} else {
    // Just found waiting sender with not closed.
    if sg := c.sendq.dequeue(); sg != nil {
        // Found a waiting sender. If buffer is size 0, receive value
        // directly from sender. Otherwise, receive from head of queue
        // and add sender's value to the tail of the queue (both map to
        // the same buffer slot because the queue is full).
        recv(c, sg, ep, func() { unlock(&c.lock) }, 3)
        return true, true
    }
}

if c.qcount > 0 {
    // Receive directly from queue
    qp := chanbuf(c, c.recvx)
    if ep != nil {
        typedmemmove(c.elemtype, ep, qp)
    }
    typedmemclr(c.elemtype, qp)
    c.recvx++
    if c.recvx == c.dataqsiz {
        c.recvx = 0
    }
    c.qcount--
    unlock(&c.lock)
    return true, true
}

if !block {
    unlock(&c.lock)
    return false, false
}

// no sender available: block on this channel.
gp := getg()
mysg := acquireSudog()
// ...
mysg.elem = ep
mysg.g = gp
mysg.c = c
c.recvq.enqueue(mysg)

// ...
gopark(chanparkcommit, unsafe.Pointer(&c.lock), reason, traceBlockChanRecv, 2)

// someone woke us up
// ...
success := mysg.success
gp.param = nil
releaseSudog(mysg)
return true, success

if c.dataqsiz == 0 {
    if ep != nil {
        // copy data from sender
        recvDirect(c.elemtype, sg, ep)
    }
}

else {
    // Queue is full. Take the item at the
    // head of the queue. Make the sender enqueue
    // its item at the tail of the queue. Since the
    // queue is full, those are both the same slot.
    gp := chanbuf(c, c.recvx)
    // copy data from queue to receiver
    if ep != nil {
        typedmemmove(c.elemtype, ep, qp)
    }
    // copy data from sender to queue
    typedmemmove(c.elemtype, qp, sg.elem)
    c.recvx++
    if c.recvx == c.dataqsiz {
        c.recvx = 0
    }
    c.sendx = c.recvx // c.sendx = (c.send+1) % c.dataqsiz
}

func recvDirect(t *_type, sg *sudog, dst unsafe.Pointer) {
    // dst is on our stack or the heap, src is on another stack.
    // The channel is locked, so src will not move during this
    // operation.
    src := sg.elem
    typeBitsBulkBarrier(t, uintptr(dst), uintptr(src), t.Size_)
    memmove(dst, src, t.Size_)
}

if c == nil {
    panic(plainError("close of nil channel"))
}
lock(&c.lock)
if c.closed != 0 {
    unlock(&c.lock)
    panic(plainError("close of closed channel"))
}

// ...
c.closed = 1

var glist glist
// release all readers
for {
    sg := c.recvq.dequeue()
    if sg == nil {
        break
    }
    if sg.elem != nil {
        typedmemclr(c.elemtype, sg.elem)
        sg.elem = nil
    }
    gp := sg.g
    gp.param = unsafe.Pointer(sg)
    sg.success = false
    glist.push(gp)
}

// release all writers (they will panic)
for {
    sg := c.sendq.dequeue()
    if sg == nil {
        break
    }
    gp := sg.g
    gp.param = unsafe.Pointer(sg)
    sg.success = false
    glist.push(gp)
}

unlock(&c.lock)

// Ready all Gs now that we've dropped the channel lock.
for !glist.empty() {
    gp := glist.pop()
    gp.schedlink = 0
    goready(gp, 3)
}

// chanbuf(c, i) is pointer to the i'th slot in the buffer.
//
// chanbuf should be an internal detail,
// but widely used packages access it using linkname.
// Notable members of the hall of shame include:
//   - github.com/fjl/memsize
//
// Do not remove or change the type signature.
// See go.dev/issue/67401.
//
//go:linkname chanbuf
func chanbuf(c *hchan, i uint) unsafe.Pointer {
    return add(c.buf, uintptr(i)*uintptr(c.elemsize))
}

// full reports whether a send on c would block (that is, the channel is full).
// It uses a single word-size read of mutable state, so although
// the answer is instantaneously true, the correct answer may have changed
// by the time the calling function receives the return value.
func full(c *hchan) bool {
    // c.dataqsiz is immutable (never written after the channel is created)
    // so it is safe to read at any time during channel operation.
    if c.dataqsiz == 0 {
        // Assumes that a pointer read is relaxed-atomic.
        return c.recvq.first == nil
    }
    // Assumes that a uint read is relaxed-atomic.
    return c.qcount == c.dataqsiz
}

// empty reports whether a read from c would block (that is, the channel is
// empty). It is atomically correct and sequentially consistent at the moment
// it returns, but since the channel is unlocked, the channel may become
// non-empty immediately afterward.
func empty(c *hchan) bool {
    // c.dataqsiz is immutable
    if c.dataqsiz == 0 {
        return atomic.Loadp(unsafe.Pointer(&c.sendq.first)) == nil
    }
    // ...
    return atomic.Loaduint(&c.qcount == 0)
}

func chanlen(c *hchan) int {
    if c == nil {
        return 0
    }
    // ...
    return int(c.qcount)
}

func chancap(c *hchan) int {
    if c == nil {
        return 0
    }
    return int(c.dataqsiz)
}

func (q *waitq) enqueue(sgp *sudog) {
    sgp.next = nil
    x := q.last
    if x == nil {
        sgp.prev = nil
        q.first = sgp
        q.last = sgp
        return
    }
    sgp.prev = x
    x.next = sgp
    q.last = sgp
}

func (q *waitq) dequeue() *sudog {
    for {
        sgp := q.first
        if sgp == nil {
            return nil
        }
        y := sgp.next
        if y == nil {
            q.first = nil
            q.last = nil
        } else {
            y.prev = nil
            q.first = y
            sgp.next = nil
        }

        // if a goroutine was put on this queue because of a
        // select, there is a small window between the goroutine
        // being woken up by a different case and it grabbing the
        // channel locks. Once it has the lock
        // it removes itself from the queue, so we won't see it after that.
        // We use a flag in the G struct to tell us when someone
        // else has won the race to signal this goroutine but the goroutine
        // hasn't removed itself from the queue yet.
        if sgp.isSelect {
            if !sgp.g.selectDone.CompareAndSwap(0, 1) {
                // We lost the race to take this goroutine.
                continue
            }
        }

        return sgp
    }
}

select {
case <-ch1:
    // ...
case <-ch2:
    // ...
}
